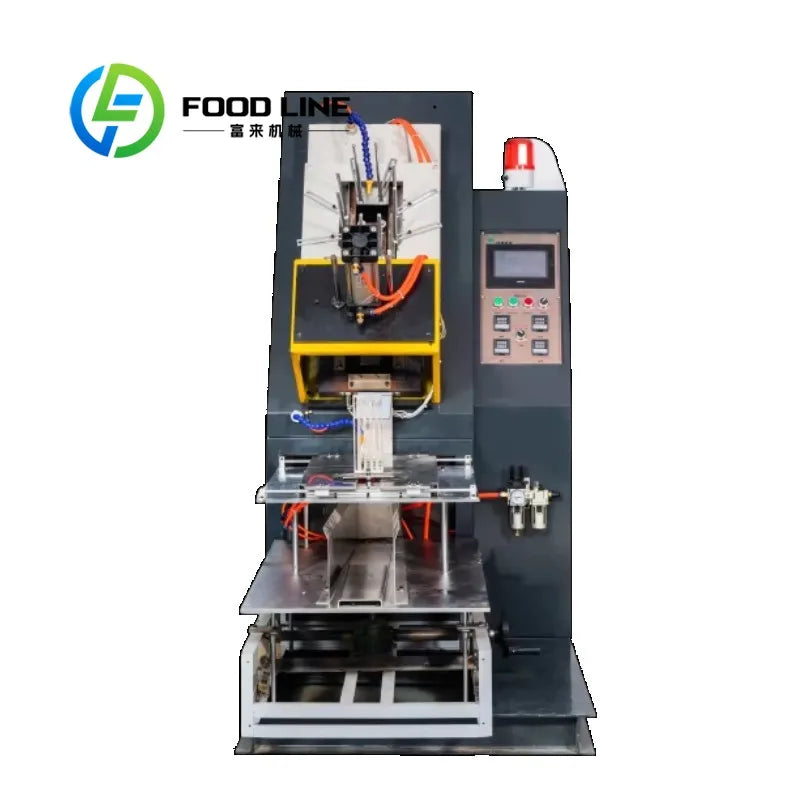

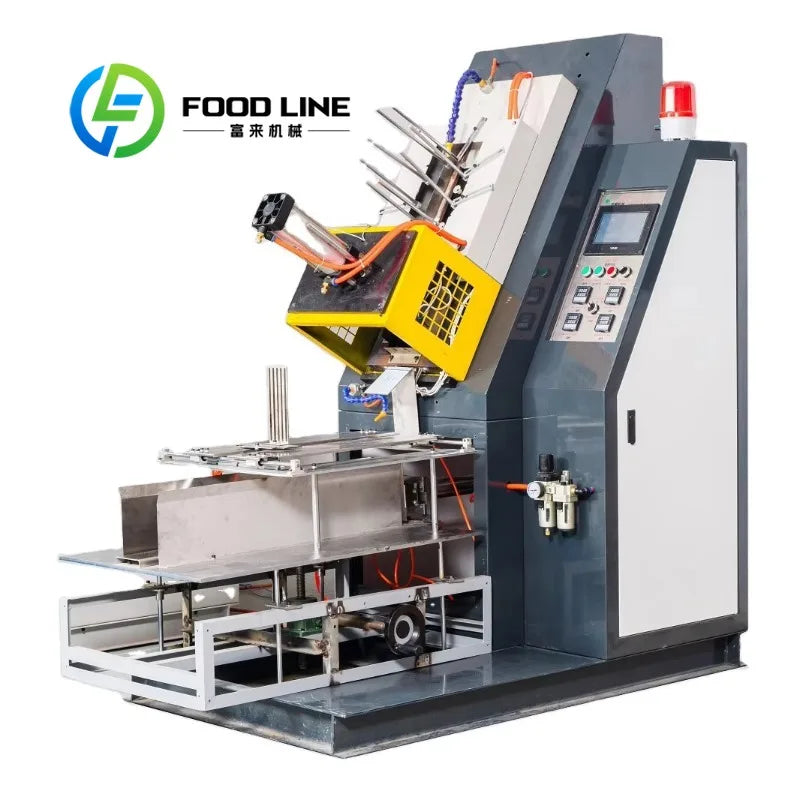

Customized Fully Automatic Paper Food Tray Making Machine Disposable Food Container Forming Equipment

Technical Data:

Rated productivity	28-30pcs/min
Raw material	PE/PLA one side coated paper (220gsm-320gsm)
Molding temperature	160-200degree
Air pressure	0.8Mpa
Air flow volume	1.08m3/min
Total power	3.3kw
Electrical supply	220V 50Hz
weight	580KG
Dimension	1550*880*500mm
Mold	Mold can changed to produce different size
Additional equipment	air compressor
Forming method	Heat sealing
Heat method	Heat pipe
Products size	Fold size of paper width max 360mm, height max 50mm

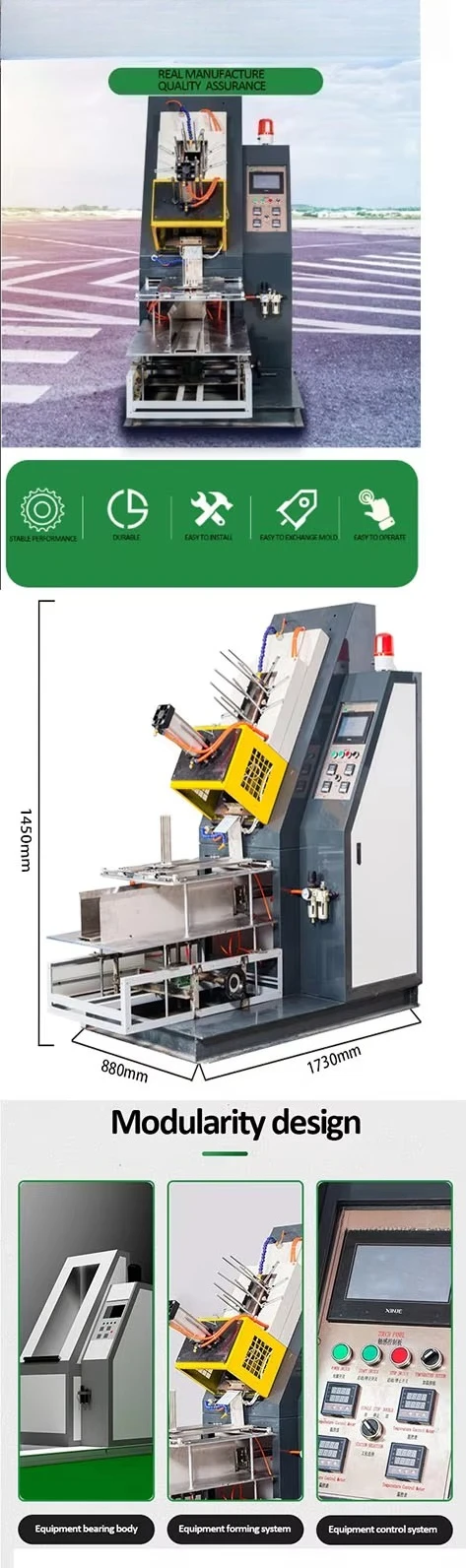

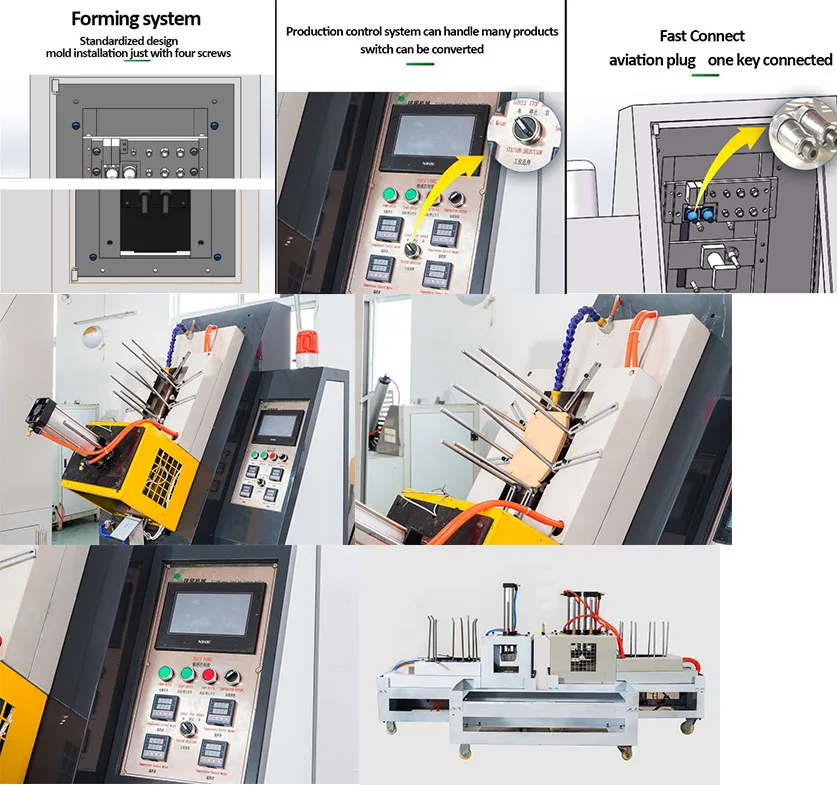

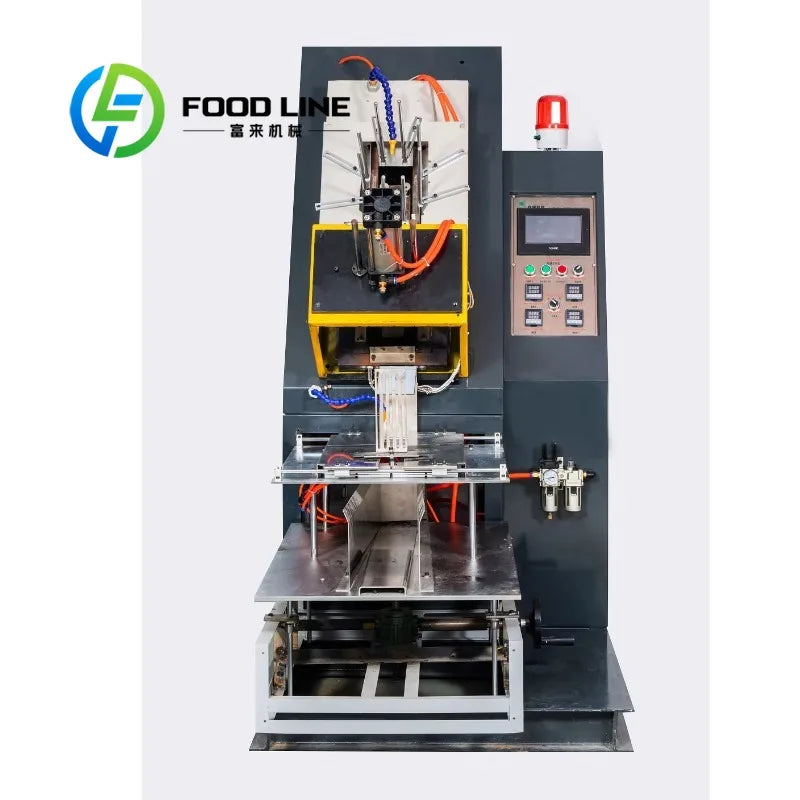

Mahcine Details:

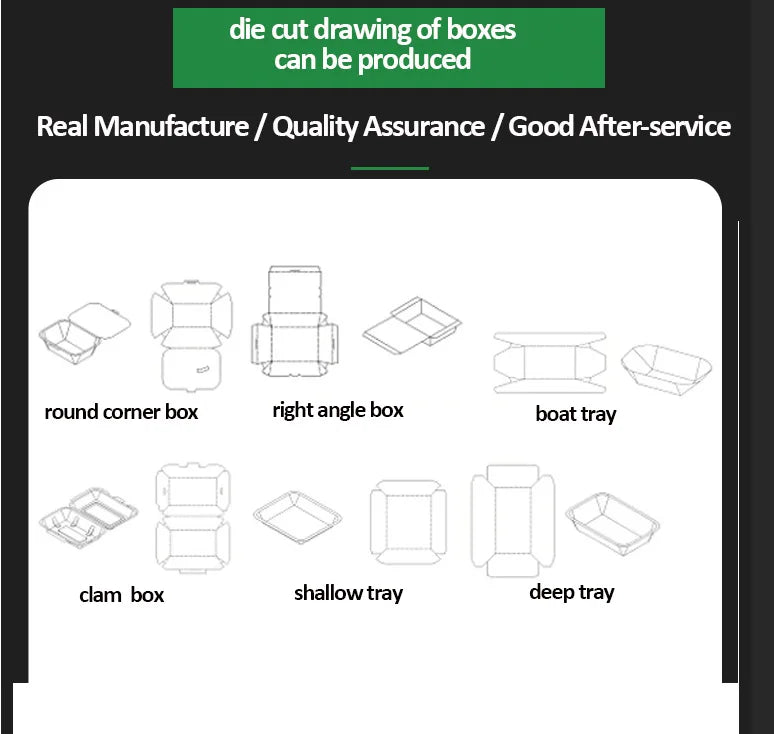

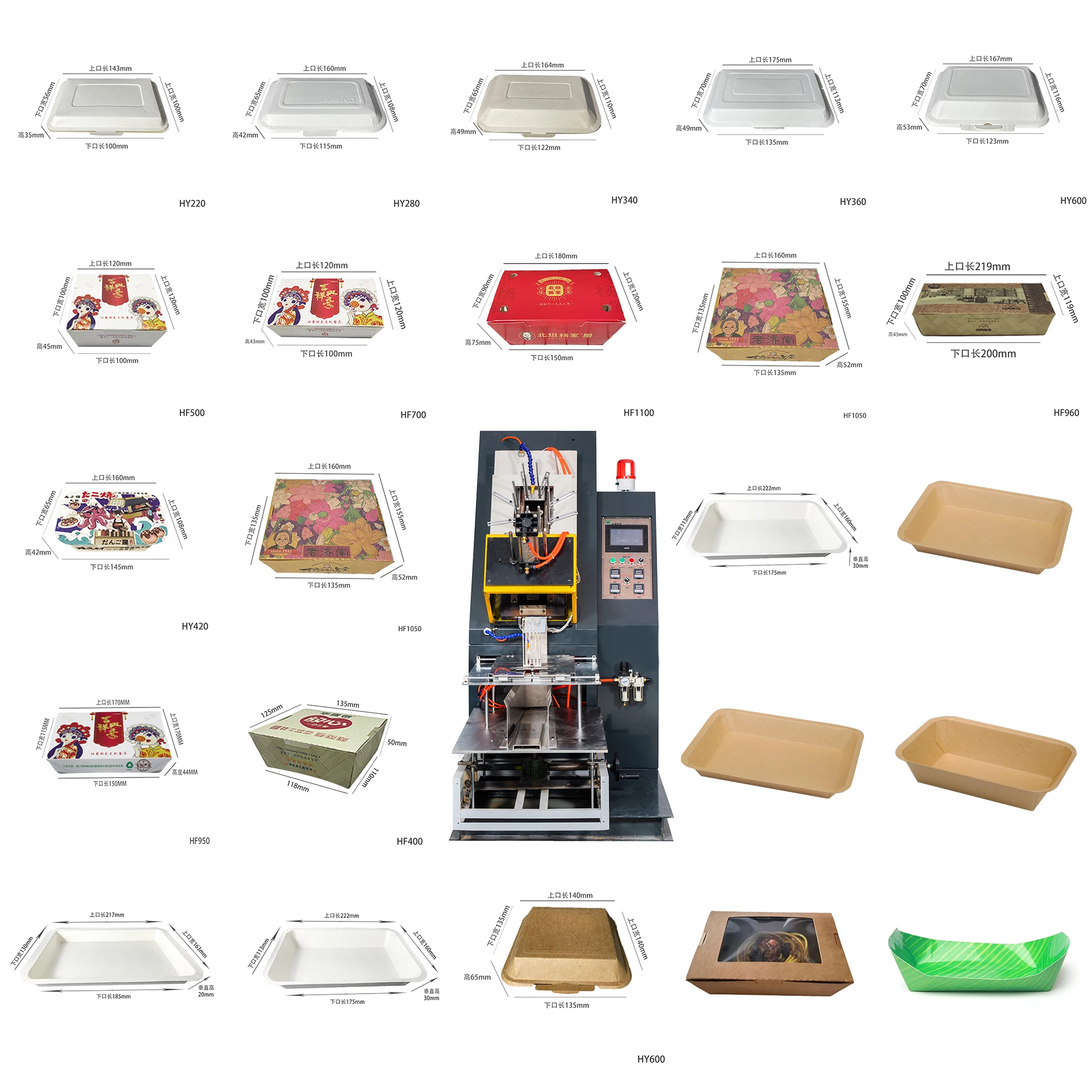

Different Type Box Produced By Machine :



Machine Features:

1. customize different size and type based on customer’s needs

2. raw material can be PE coated, paper, PET coated paper,PLA coated paper, kraft paper, bamboo pulp paper       and sugarcane paper

3. exchange mold to produce different size and type of box ,one mold will be free ,

4. forming method is heat sealing , no use any glue , finished goods will be safe for food and environment

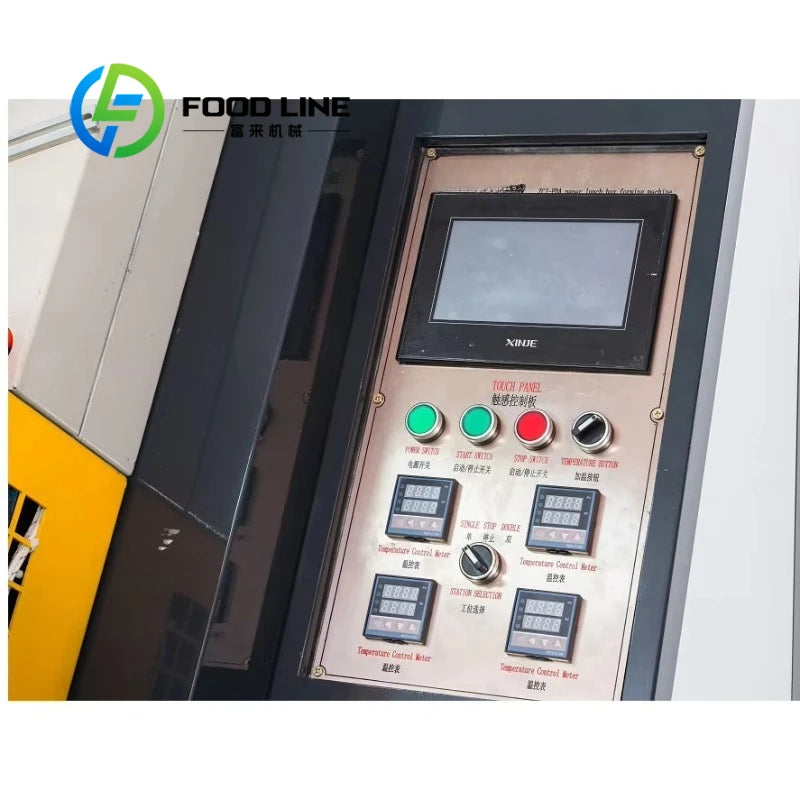

5. PLC control, easy to operate, high productivity, performance stable

6. collection box automatically, easy to pack, save labor

7. Easy operate  one-key operation  one person can operate multiple units

8.The forming mold moves up and down, which can carry a larger mold and effectively expand the forming size     of the product

9. Flat arrangement and install of forming mechanism, easy to adjust and maintain.

                     Exchange mold easily and can produce many type box

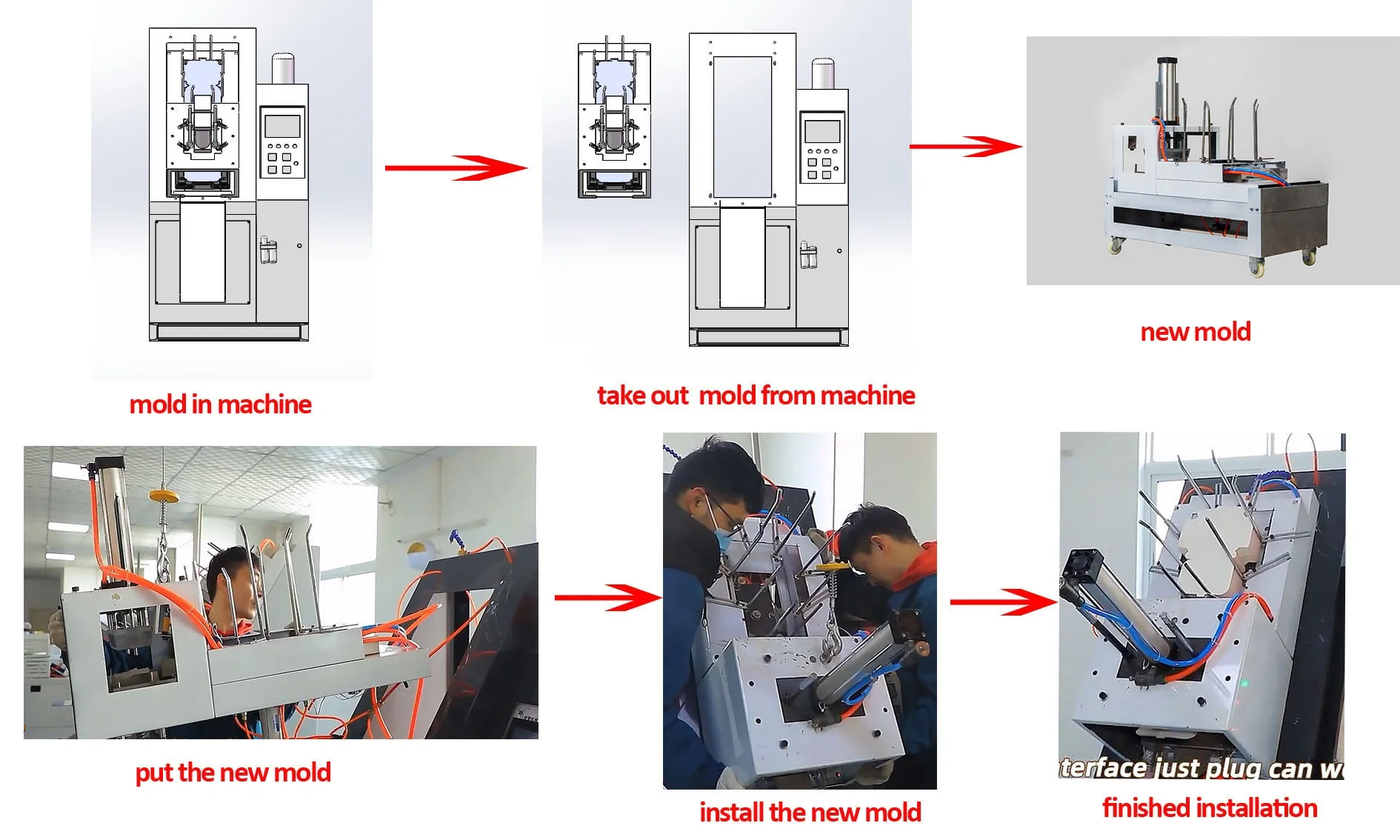

Exchange Mold Process:

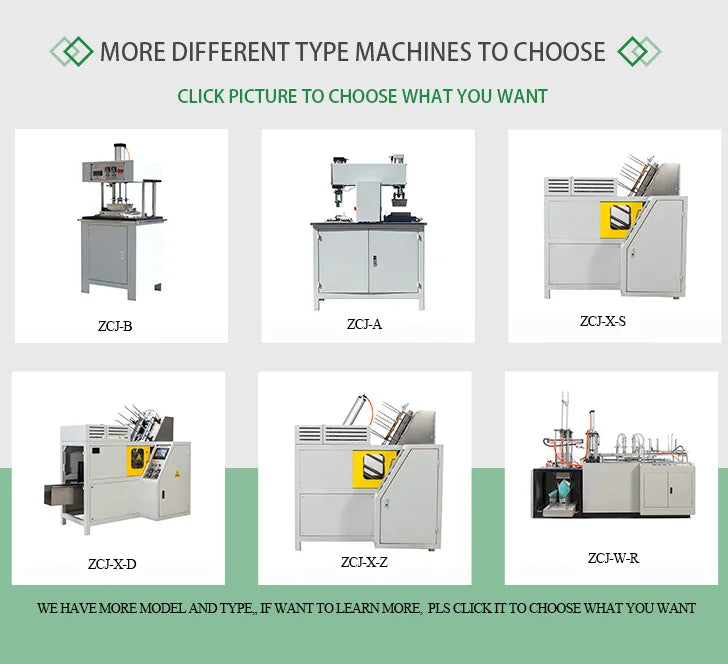

Other Type Machines:



Our advanatge :

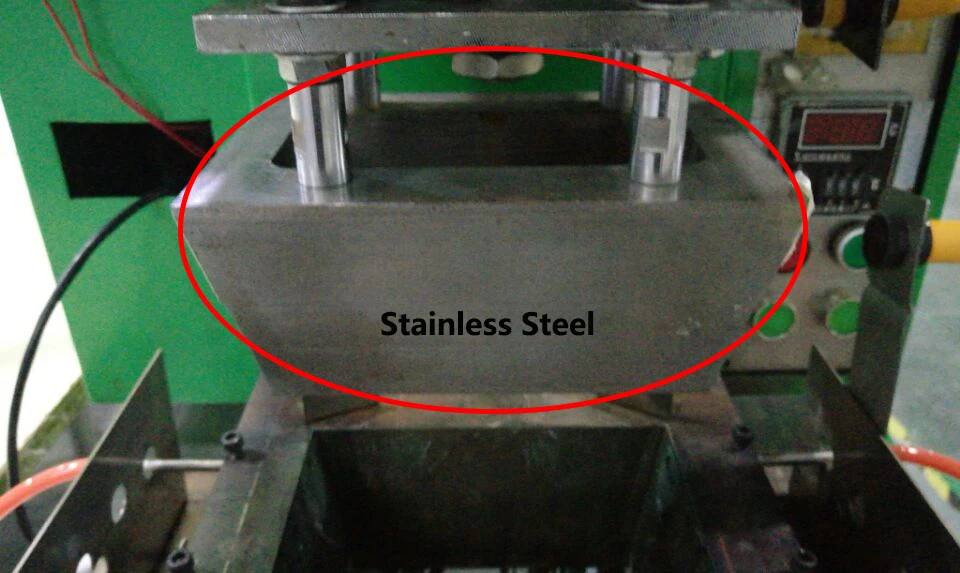

1 mold: made of stainless steel, zero conatamination, not easy to wear, long time to use

             but other supplier mold is made of cooper, easy to broken,

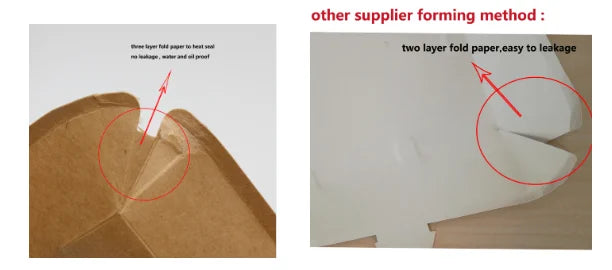

2 unique forming method: three layer fold paper to heat seal, no leakge , water and opil proof

                                          but our supplier is two layer fold paper, easy to leakage

3 there is no waste gas and water to emiss during the production,  production environment is clean and safe



4 it can produce different size and type of box through exchange mold

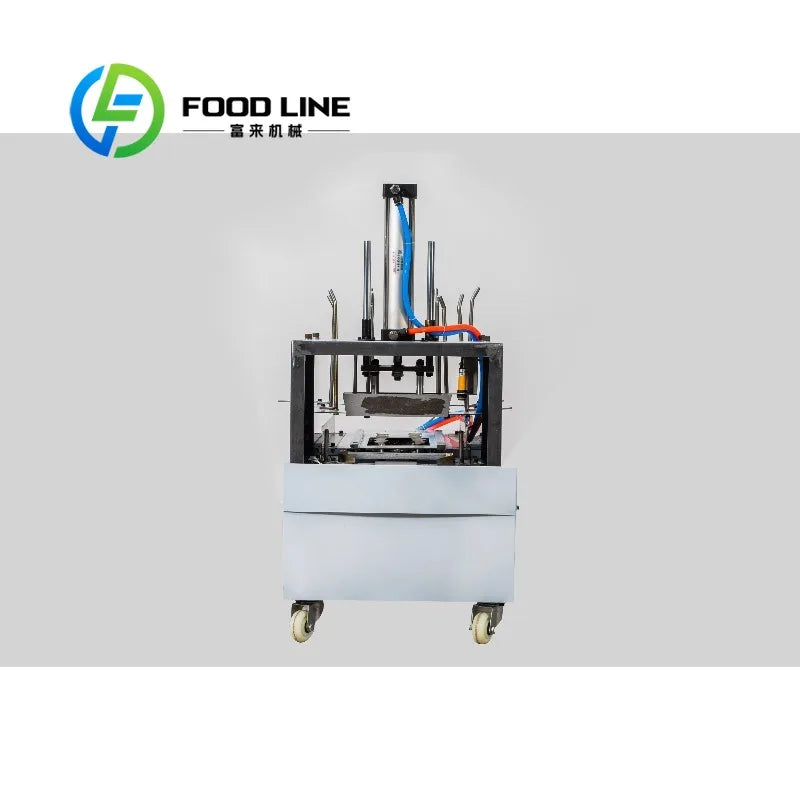

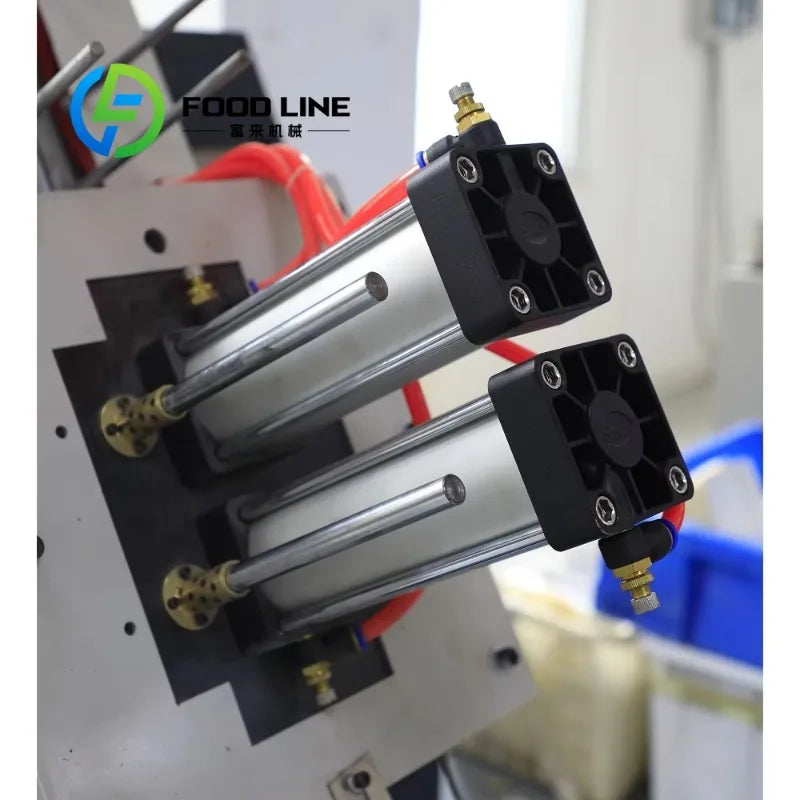

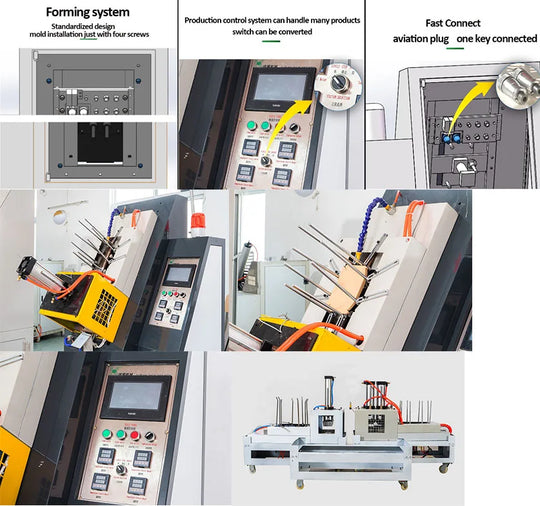

More Details of Machine:





Market Available :

 Printing factory --  can increase new project to make more profit

 Plastic products company -- can replace plastic products by paper produce based on market

 Food package company--  expand the factory to meet customer’s different food package

 Paper factory--  increase new project to make full use of paper raw material

 Paper cup factory--  also can expand other food package project

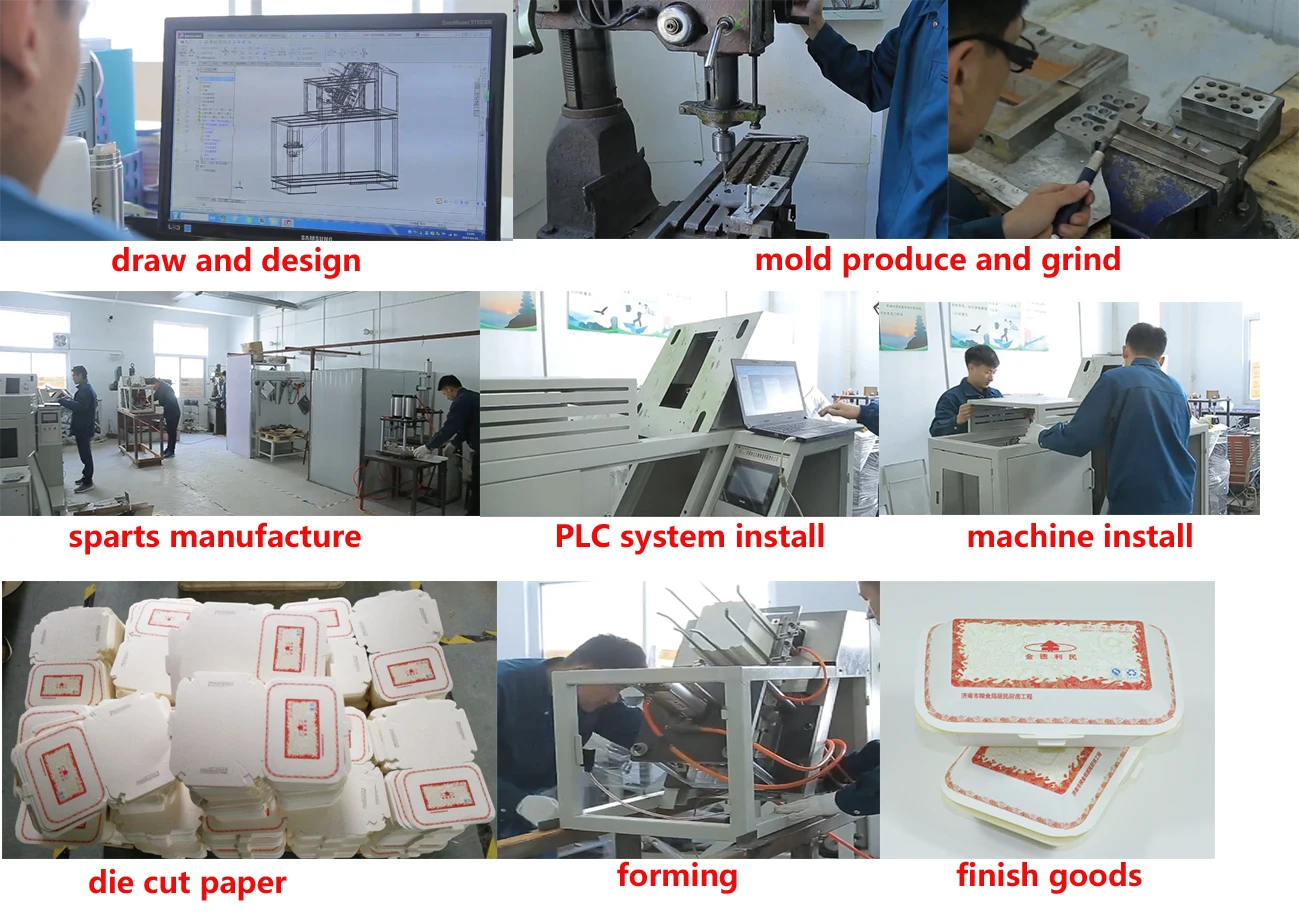

Manufacture Process:
